AC100
Merk: Comec

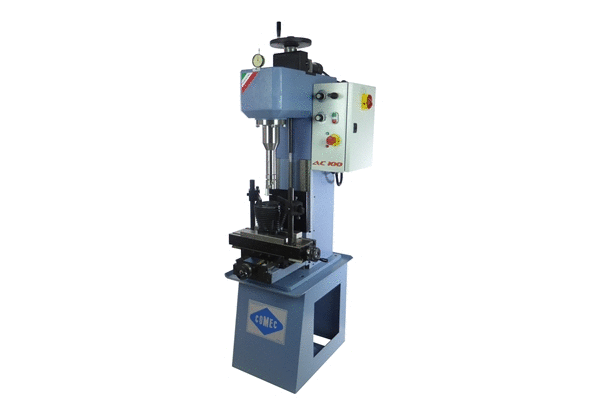

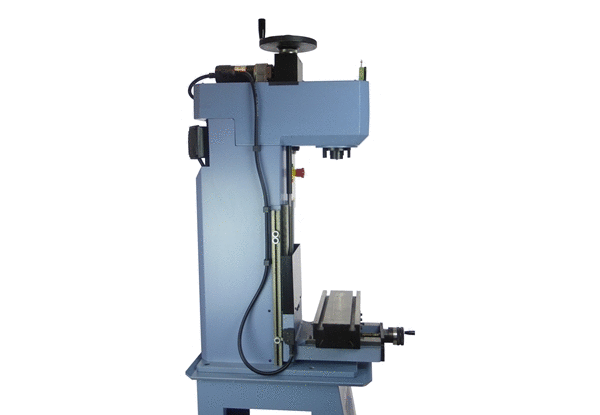

This cylinder boring machine is the result of our long experience and expertise on the market. It ensures the highest level of sturdiness and precision. A cross table guarantees the fast centering between the cylinder and the boring bar.

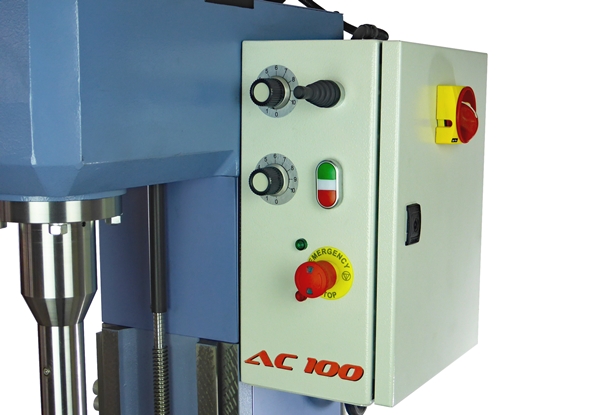

The spindle speed and the adjustable feed, the automatic control stop and the practical control panel, together with the fast centering and locking of the cylinder and the tool gauging, are the main features of this small well-performing boring machine.
A wide range of devices ensures to easily operate the machine.
Characteristics
- Variable spindle speed
- Variable feed speed
- Head power feed
- Boring depth device with dial indicator

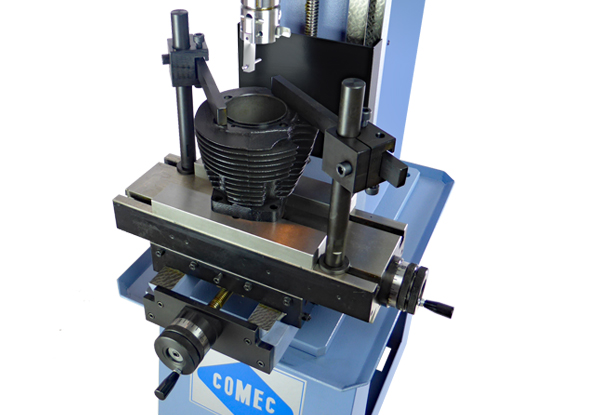

- Cross slide table for quick positioning and centering
- Precision centering device with dial gauge
- Adjustable stroke-end switches
- Wrench set
- Instruction manual
Machineparts
Specifications
- Boring capacity: 30 ÷ 125 mm
- Boring speed: 100 ÷ 660 RPM
- Min-Max distance from head to table: 570 mm
- Distance from spindle axis to column: 140 mm
- Table surface: 400 x 150 mm
- Max longitudinal table travel: 195 mm
- Max transverse table travel: 60 mm
- Table feed: 1 ÷ 70 mm/min
- Spindle motor power: 1.5 kW
- Dimensions: 600x350x1600 mm
- Weight: 300 kg
