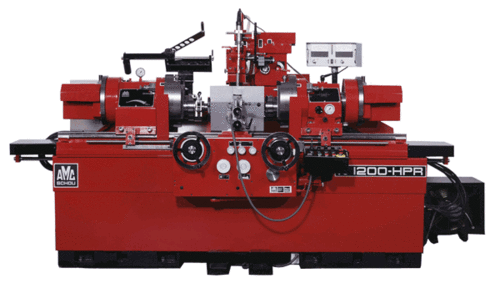

K-1200

Brand: AMC Schou

AMC-SCHOU crankshaft grinders are built to last with extra-strong castings to ensure stability and long life. All bearings are over-dimensioned to maximise reliability. Antifriction coating eliminates stick-slip effect. Fast and accurate setting-up is ensured by the face-plate system with integrated four-way adjustment. Variable 30° and 72° indexing with +/- 1° fine adjustment is standard. Maintenance free hardened ballscrews and nuts ensure backlash free stroke setting in seconds

Request quote

Characteristics

Standard Equipment:

  • Universal chucks
  • set-up indicator
  • steady rest
  • crank centering V-gauge
  • radius dresser, front & side dresser
  • wheel balancing arbour
  • grinding wheel and hub
  • lifting hook
  • coolant system
  • splash guards
  • set of tools and operating manual.
Extra Equipment: Belt polisher, automatic sizing gauge, electronic in-process control, extra grinding wheels and hubs, hydraulic dresser, light weight and heavy-duty steady rests, inside counterweights, gauge for measuring crank sag, device for measuring length of stroke, axial journal control, device for control of throw setting, rear stop for grinding all diameters, auxiliary tool stand, automatic band filter, manual band filter, CE safety guards, increased swing from 690 mm (27") to 750 mm (29.5").

Machineparts

TECHNICAL SPECIFICATIONS

  • Max. distance between chucks: 1200 mm, 47,2 inch
  • Max. distance between centres: 1220 mm, 48 inch
  • over table: 460 mm, 18 inch
  • Max. stroke – twice off-set of centres: 160 mm, 6.3 inch
  • Steady rest, standard, min. capacity: 20 mm, 0,8 inch
  • Steady rest, standard, max. capacity: 100 mm, 4 inch
  • Max. workpiece diameter – new wheel: 410 mm, 16 inch
  • Max. workpiece diameter workhead-chuck: 155 mm, 6 inch
  • Max. workpiece diameter tailstock-chuck: 155 mm, 6 inch
  • Max. weight between chucks: Depending on crankshaft configuration
  • Workpiece spindle speeds stepless: rpm 20-100
  • Table speed manual
  • 5 mm/rev, 0.2 inch/rev
  • Table speed stepless: 4-4000mm/min, 0-158 inch/min
  • Wheel slide rapid movement: 3000 mm/min. 118 inch/minMotors
  • Grinding wheel motor: 4.0 Kw, 5.5 hP
  • Workhead motor hydraulic: 25 l/min, 5,5 gal/min
  • Hydraulic power pump: 2.2 kW, 3 hP
  • Coolant pump: 0.16 kW, 0.21 hPDimensions
  • Grinding wheel diameter: 660 mm, 26 inch
  • Min. grinding wheel width: 19 mm, 0.75 inch
  • Max. grinding wheel width: 50 mm, 2 inch
  • Height floor to spindle centre: 1120 mm, 44 inch
  • Height of machine: 1475 mm, 58 inch
  • Total length of machine: 2950 mm 116.1 inch
  • Total width of machine: 1750 inch, 68.9 inch
  • Working space required 4220x1700 mm, 166.1x66.9 inch
  • Net. weight approx.: 3300 kg, 7260 lbs
  • Shipping weight approx. (wooden box): 3850 kg, 8470 lbs
  • Shipping volume:  11.1 m³,  319.1 ft³
