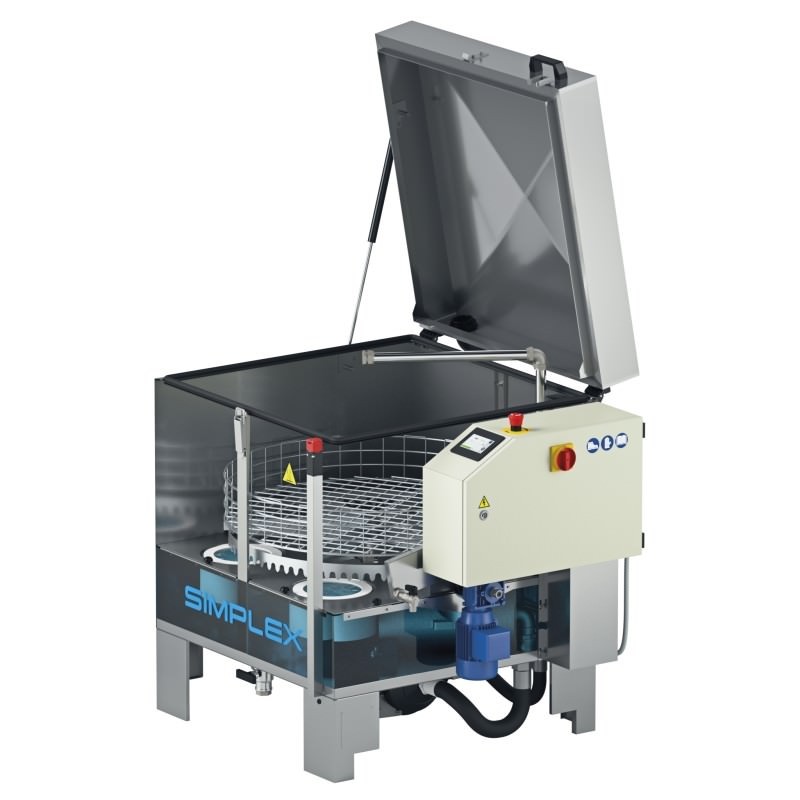

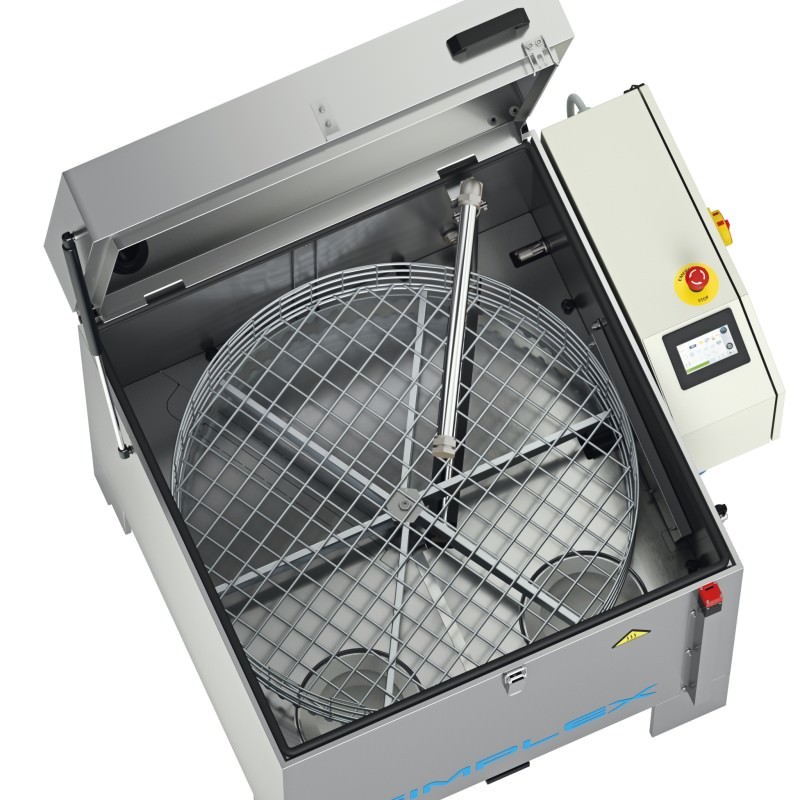

Simplex 60
Brand: Teknox
PARTS WASHERS WITH ROTARY BASKET, PLC AND TOUCHSCREEN
Simplex is a system ideal for the automatic washing of small and medium size mechanical parts.
The washing is carried out by the action of upper, lower and side jets.
The slow rotation of the basket is ensured by a gear motor.
A PLC and touchscreen display management enables numberless customizations thanks to a wide range of accessories.
Characteristics
What is included in each SIMPLEX 60/80
- Reinforced basket in electrowelded net with external edge of galvanized steel
- Tank liquid maximum level control and solenoid valve for automatic water intake
- Minimum level control
- Colour 4'' touchscreen display for settings and programs.
- Electric pumps in stainless steel AISI 304 with special gaskets
- Filter in stainless steel AISI 304 on the pump suction
- Safety limit switch on the cover opening
- Tank edge gasket
- IP 65 electric system with PLC touchscreen (DGT V4)
- Weekly programming for the activation of heating and oil separator (if installed)
- Mechanical rotation of the basket by a gear motor
- Structure and plates in STAINLESS steel AISI 304
- Flexible suction and pump delivery pipes (easy maintenance)
- Stainless steel AISI 304 washing pipes with laser perforated nozzles
What is included in HT version
- Electric timed steam extraction
- Tank thermal insulation with panels in Stainless steel AISI 430
- Safety limit switch with cover opening lock during the cycle
- Panels under the basket with trap filter for grease and chip collection
Machineparts
SIMPLEX 60
- Washing capacity ( Ø x H ): Ø 58x H 38 cm
- Basket load capacity: 100 kg
- Tank: 60 lt
- Washing capacity ( Ø x H ): Ø 78 x H 38 cm
- Basket load capacity: 100 Kg
- Tank: 130 lt
- Maximum temperature setting 60°C
- Maximum temperature setting 80°C
