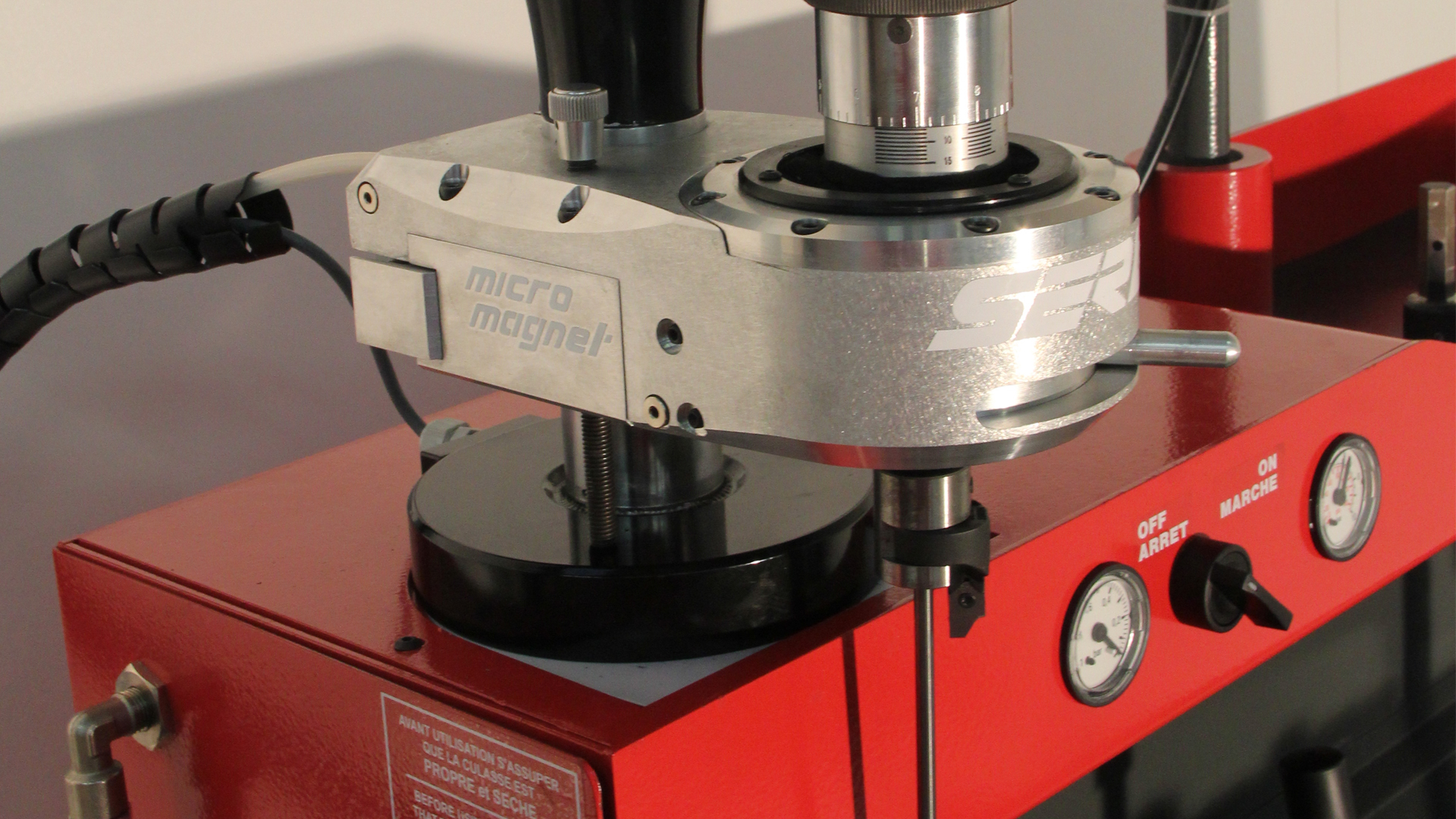

Micro Magnet
Merk: Serdi
Multi-angle seat cutting unit with precision dual centering system. Ideal for low volume motorcycle and for automotive shops on small diameters.
Aanvraag offerte Download PDF Product filmCharacteristics
- User friendly ergonomic design.
- Easy tool setting, multi-angle seat machining and seat pocket counterboring.
- Uses original SERDI tooling for machining accuracy and economical upgrade to bigger equipment.
- Machining capacity from 0.63’’ /16 mm to 2’’/50 mm.
- Direct magnetic clamping on head center’s steel plate.
- Rugged and heavy construction: 15.4 lb / 7 kg) for rigidity, durability and dependability.
- Precision Vernier for consistent cutting depth control. 0.600’’/15 mm total travel, 0.0008’’/0.02 mm increments.
- 8 degrees spindle tilt accommodate canted and compound angle valves.
- Dual plane and spherical air cushions for perfect concentricity
Machineparts
TECHNICAL FEATURES
- Dimensions Length: mm / inch 253.5/10
- Width: mm / inch 135/5.3
- Height: mm/inch 208/8.2
- Weight: kg / lbs 7/15.4
- Sphere-cylinder travel (radius): mm / inch 5/0.10
- Spindle stroke: mm / inch 15/0.6
- Spindle rotation speed rpm 50 to 150
